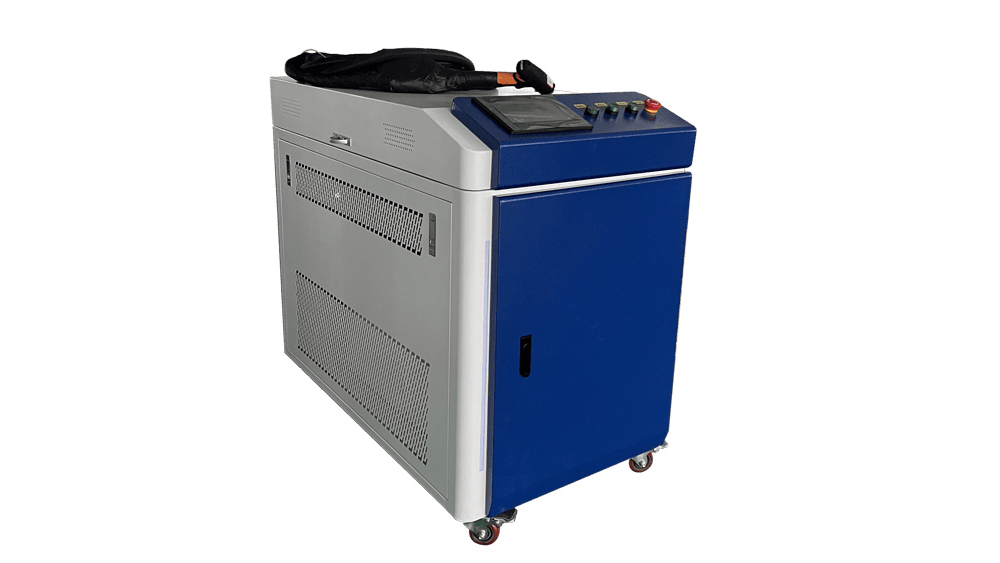

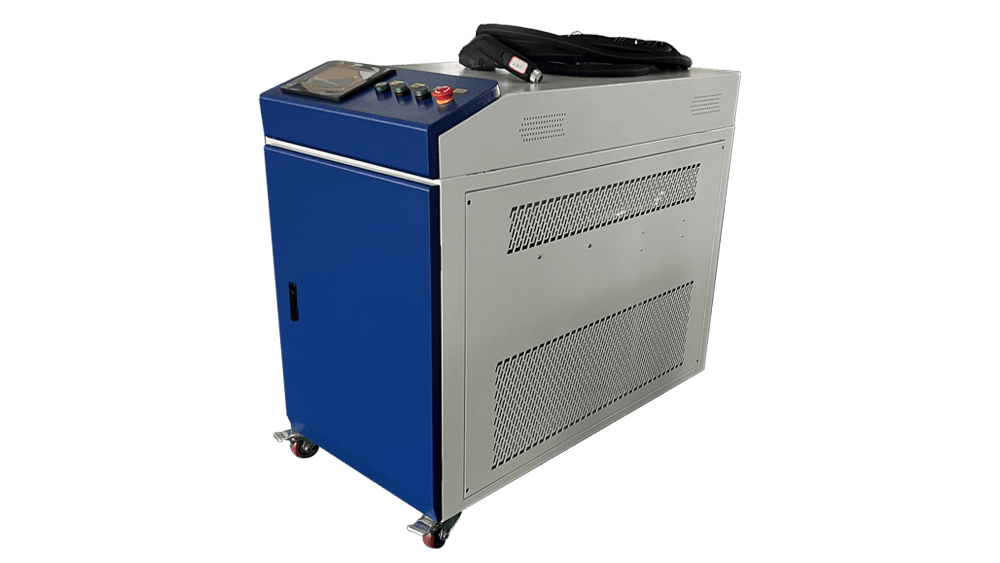

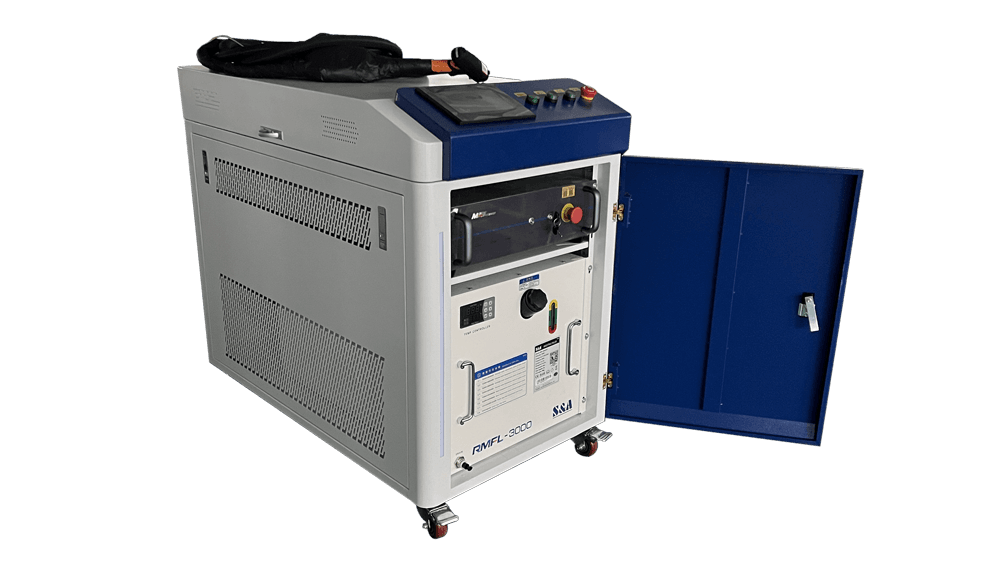

1kw-3kw SUP21T Handheld Fiber Laser Welding Machine
Model: ZFW-1000W/1500W/2000W/3000W
Suitable Material: Stainless Steel, Carbon Steel, Copper, Brass, Galvanised or other Metal Materials
Handheld Continuous Fiber Laser Welding Machine
Payment: TT/ LC/Visa/ Mastercard/Credit Cards/Paypal/DP
Warranty: 3 Years
Min. Order Quantity: 1 Set
Supply Ability: 100 Sets Per Month
Machine Woring Video
Precise cutting effect to meet the cutting needs of each customer
Configurations Instruction
Fiber Laser Source
We support laser brands such as MAX, Raycus, IPG, Reci, Everfoton, etc., and provide lasers according to customer requirements. The laser sources a long life and maintenance-free operation, high electro-optical conversion efficiency, good beam quality, high energy density, remote networking diagnosis system, wide modulation frequency, and strong reliability features.
SUP21T Handheld Laser Head
Dust-proof and drop-proof, anti-jamming. The focusing mirror and protective mirror are made into drawers for easy replacement. The collimating mirror is integrated with the QBH to realize on-site replacement.
Support Multi Language
System supports English, Portuguese, Korean, Turkish, Russian, German, Italian, Vietnamese, Spanish, Romanian, Czech, Japanese, Greek, etc.
Super Laser SUP21T Welding System
Welding software is easy to operate, even the beginner can master the skills within few hours. Strong software function can be realized by simple touch screen. It has editable and memory functions.
Multi-point temperature measurement, real-time monitoring
Self-developed safety detection system, real-time monitoring of multi-point temperature inside the fuselage.
4 in 1 functions
The laser head and controller support laser welding, cutting and cleaning functions.
Protective Glasses
It can protect your eyes. The frame is made of ultra- light materials, ultra thin design, comfortable to wear. Lens surface enhancement treatment, anti-artc, anti-static, anti-shock, anti-scratch.

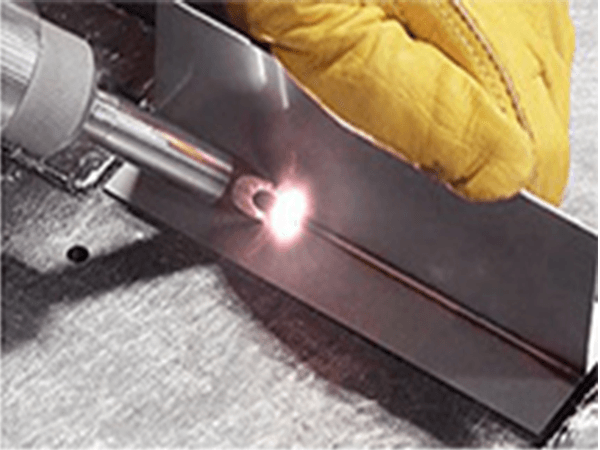

Machine Processing
Machine Parameters
| Model | ZFW-1500W-3000W |
| Laser Source | MAX/Raycus/Everfoton |
| Welding System | Sup Laser |
| Welding Head | Sup Laser 21T |
| Water Chiller | S&A ( Water Cooling ) |
| Fiber Cable Length | Standard 10m ( Maximum is 20m, if you need 20m need add extra cost) |
| Laser Wavelength | 1070nm |
| Collimating Focal Length | D16 F60mm |
| Focus Length | D20 F150mm |
| Laser Frequency | 1-2000Hz |
| Scan Speed | 0-7000mm/s |
| Welding Line Requirements | ≤0.5mm |
| Welding Speed | 0-120mm/s |
| Spot Adjustment Range Line | 0-8mm |
| Voltage | 1000W – 2000W : 1 Phase 220 50hz/60hz 3000W : 3 phase, 380v. 50hz/60hz |
| Gas | N2 or Argon |

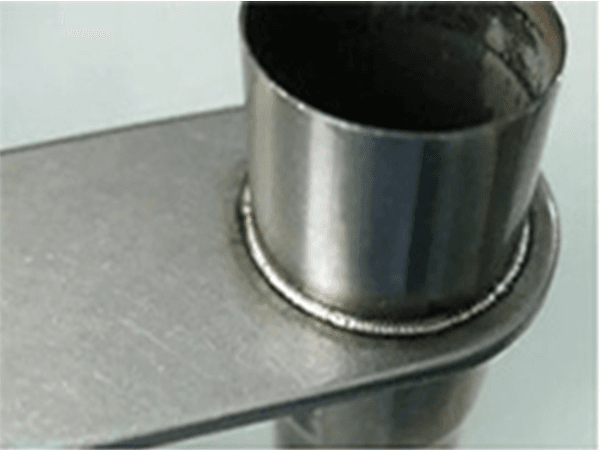

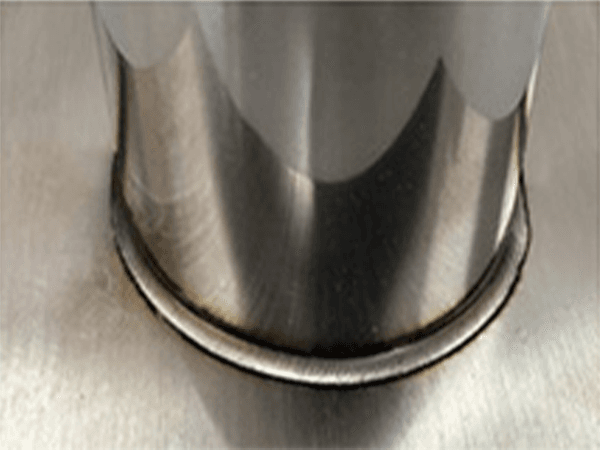

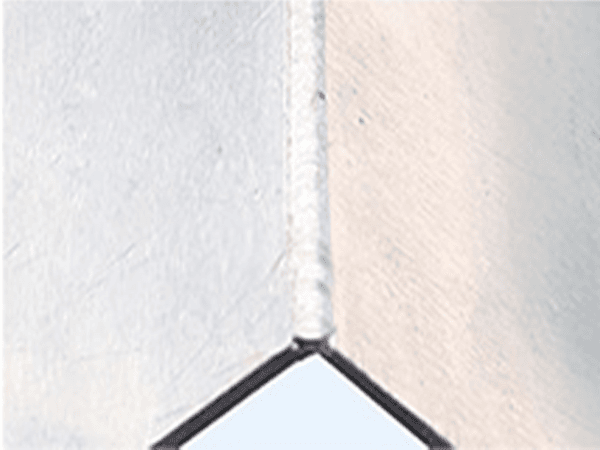

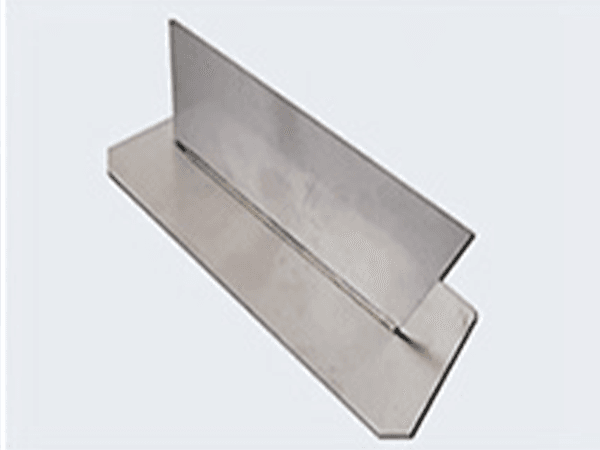

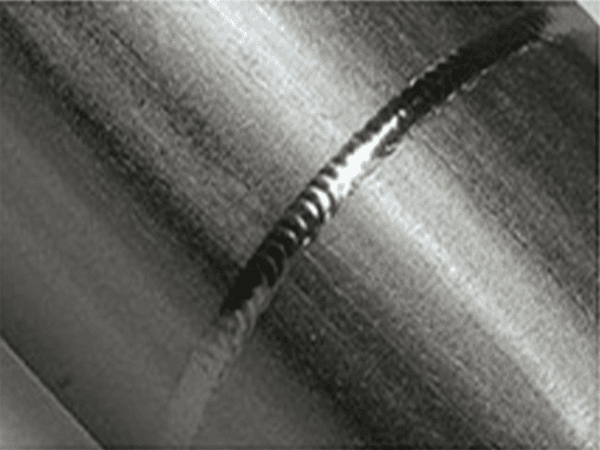

Samples
